COMP1406 - Tutorial #3
Inheritance and Interfaces



Description:

The purpose of this tutorial is to help you understand inheritance, abstract classes, overriding methods and interfaces in JAVA.   You will work with many classes in this tutorial, so please try to stay focused.

Instructions:
  1. Consider a game of "ball tag" in which a player (who is "it") chases other players around  an environment with a ball and tries to hit them with it.   When the a player gets hit with the ball, they become "it" and try throw the ball at the other players.   Each time a player hits another he/she gains points and when a player gets hit, he/she loses points.

Assume that the environment has rectangular walls that prevent movement in certain directions.  Also assume that there are traps where a player cannot run into, otherwise he/she loses points.   Lastly, assume that there are prizes that the players can collect for bonus points while running around.

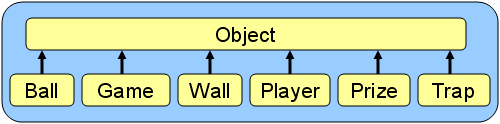

Some classes for this game have been developed and they form the class hierarchy shown below:



Download these classes (as well as an additional test program) by clicking on the links below and saving them in a Tutorial3 folder on the Z drive.   Open them with JCreator and compile them.

Ball.java,   Game.java,   Wall.java,   Player.java,   Prize.java,   Trap.java,   GameTestProgram.java

Run the test code.   You should see the following output:
Here are the Game Objects:
Wall at java.awt.Point[x=0,y=0] with width 10 and height 200
Wall at java.awt.Point[x=10,y=0] with width 170 and height 10
Wall at java.awt.Point[x=180,y=0] with width 10 and height 200
Wall at java.awt.Point[x=10,y=190] with width 170 and height 10
Wall at java.awt.Point[x=80,y=60] with width 100 and height 10
Wall at java.awt.Point[x=10,y=90] with width 40 and height 10
Wall at java.awt.Point[x=100,y=100] with width 10 and height 50
Prize at java.awt.Point[x=165,y=25] with value 1000
Prize at java.awt.Point[x=65,y=95] with value 500
Prize at java.awt.Point[x=145,y=165] with value 750
Trap at java.awt.Point[x=125,y=35]
Trap at java.awt.Point[x=145,y=145]
Player Blue Guy at java.awt.Point[x=38,y=156] facing 90 degrees
Player Yellow Guy at java.awt.Point[x=55,y=37] facing 270 degrees
Player Green Guy at java.awt.Point[x=147,y=116] facing 0 degrees
Ball at java.awt.Point[x=90,y=90] facing 0 degrees going 0 pixels per second

  1. Examine the classes and look at the attributes (i.e., instance variables).   You will notice that there is a lot of duplicate information.   For example, Ball, Wall, Player, Prize and Trap all keep track of a location, and Ball and Player both have a direction and speed.   This is not very nice.   To eliminate the duplication, we will re-organize the classes by abstraction (i.e., by extracting the common attributes and behaviors).   One way of doing this would be to see what all objects have in common.   It seems that all objects except Game have a location.   So we will begin by getting that information out from the objects and storing it in a common class which they can all inherit from.

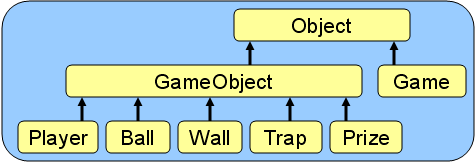

    1. Create a class called GameObject that will store a single attribute called location of type Point (you'll need to import java.awt.Point).  Create a constructor in GameObject that takes an initial location Point and sets it.  Compile the class.
  1. Remove the location variable from the Ball, Wall, Player, Prize and Trap classes.   You will notice that none of these classes will compile now since the constructor and toString() methods both make use of the location variable.
  1. Adjust the Ball, Wall, Player, Prize and Trap classes so that they become subclasses of GameObject (i.e., simply append extends GameObject after the class name is defined).   The code will not yet compile properly.   Here is the new hierarchy:

  1. Try recompiling the Ball, Wall, Player, Prize and Trap classes.   You should notice an error.   The "cannot find symbol constructor GameObject()" indicates that JAVA is trying to find a zero-parameter constructor in the GameObject class.   It is doing this because in the constructors for Ball, Wall, Player, Prize and Trap classes, JAVA is trying to first do super() ... which means it is trying to call GameObject(), which does not exist.   As it turns out, whenever you write a constructor, there is automatically an implicit call to the super class's zero-parameter constructor.  In our case, the GameObject class has a 1-parameter constructor, so things don't work.
To change this default behavior, replace the this.location = loc; code with super(loc) on the first line of your constructors in the Ball, Wall, Player, Prize and Trap classes.   Now java will use this new constructor call and not attempt to call the one that does not exist.  The classes should now compile.

Basically, what we just did was move the initialization code for the location attribute into the GameObject class and we are "calling" this code from the other 5 constructors through super(loc) ... passing it the initial loc that we want to use.   If you do not understand what happened, ask the TA.

Run the test program to make sure that it still works.   At this point, 5 of our classes are now successfully inheriting the location attribute.
  1. Notice also that both the Player and Ball classes have a direction and speed attribute.   That means, they have something in common ... they are both kinds of GameObjects that can move around.   To avoid duplication, we will want to use inheritance again.   We are going to abstract out even further resulting in more changes to the hierarchy.

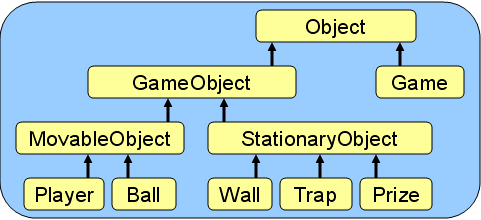

    1. Create two subclasses of GameObject called MovableObject and StationaryObject.
    1. Adjust the hierarchy so that Player and Ball extend (i.e., inherit from) MovableObject while Wall, Trap and Prize extend StationaryObject (none of the classes will compile yet though):

  1. Remove the direction and speed attributes from Player and Ball, and copy them into MovableObject. Don't try compiling yet, as things are still a bit messed up.
  1. In MovableObject, create a single constructor that takes a direction d, speed s and location loc as its 3 parameters (in that order) and in the first line it should make the call super(loc); to its superclass' constructor (don't forget to import the Point class again).   Make sure that your MovableObject class now compiles ok.
  1. Adjust the first few lines of the Player and Ball constructors in order to get the code to compile by calling the new constructor that you made in MovableObject which now takes 3 parameters, not just the one.  When making your changes ... think about which initial direction, speed and location that you want to pass as parameters ... are they fixed values or parameters ?   Your Ball constructor should have 2 lines remaining in it once you are done and your Player constructor should have 5 lines.   Both  Ball and Player should now compile ok.
  1. Add a constructor to the StationaryObject class which calls super(loc); to simply set the initial location.   Although there are no shared attributes between Wall, Trap and Prize, we will still make them inherit from StationaryObject in case we need to add additional shared attributes or behaviors in the future.  Make sure that the StationaryObject, Wall, Trap and Prize classes all compile ok before you continue.
  1. Now we will complete our abstraction process by making some of the classes Abstract.   In our program, we do not want to make any instances of GameObject, MovableObject or StationaryObject.   Instead, we will force everyone to make instances of the more specific objects of Ball, Wall, Player, Prize and Trap.   To do this, we will make GameObject, MovableObject and StationaryObject to all be abstract classes.
    1. First, we should test these classes before we move on.   Add the following lines of code in the GameTestProgram (just before the walls are added) which will create instances of GameObject, MovableObject and StationaryObject.  Re-compile and run the code and then make sure that you notice the three new objects created:
// Simple Test
g.add(new GameObject(new Point(0,0)));
g.add(new MovableObject(0, 0, new Point(0,0)));
g.add(new StationaryObject(new Point(0,0)));

The output should be something like this:
Here are the Game Objects:
GameObject@72093dcd
MovableObject@3cb89838
StationaryObject@7b11a3ac
Wall at java.awt.Point[x=0,y=0] with width 10 and height 200
...
  1. Add the keyword abstract before the word class at the top of the GameObject, MovableObject and StationaryObject class definitions and then recompile them.  DO NOT RE-COMPILE THE GameTestProgram.   Here is what we did:

  1. Without re-compiling, re-run the GameTestProgram class.   You should get an exception as follows:   java.lang.InstantiationError: GameObject.  That is because we are not allowed to instantiate (i.e., create) any GameObjects, because they are now abstract.  (There is a setting in JCreator though, that may cause your run button to first re-compile... if you don't get the above error, do not worry ... all is fine).  Re-compile the GameTestProgram class.   The compiler will tell you that you cannot make instances of GameObject, MovableObject, nor StationaryObject.
  1. Remove these 3 lines of code from the test program that you just added and the code should compile and run as before.   Remember ... making a class abstract does not change the way it works, it just means that you can no longer create instances of that class directly.
  1. Now we will make behavior for our objects to allow them to update themselves.
    1. Create the following abstract method in the GameObject class and then recompile it:
abstract void update();

Your code will still run as before.
  1. Try recompiling the Wall class.   You will get the following error: Wall is not abstract and does not override abstract method update() in GameObject.   This is JAVA's way of telling you that the Wall class did not implement the update() method and that it is "supposed to" since it now inherits from GameObject.   In fact, Player, Ball, Prize and Trap classes will also need to implement this method.  Implement this update() method in the StationaryObject class but leave the body of the method blank (i.e., do nothing because stationary objects do not need to update since they do not move) and then re-compile the StationaryObject class.
  1. Re-compile the Wall, Prize and Trap classes.   They should compile OK now because they inherit the "blank" update() method.
  1. Write the following update() method in the MovableObject class as follows which will allow MovableObjects to move forward and redraw themselves whenever asked to update (don't compile yet):
void update() {
    this.moveForward();
    this.draw();
}
  1. Write this moveForward() method in MovableObject now as follows which will move the object to its next location based on its speed, direction and current location (don't compile yet):
void moveForward() {
    if (this.speed > 0)
        this.location.translate((int)(Math.cos(Math.toRadians(this.direction)) * this.speed),
                                (int)(Math.sin(Math.toRadians(this.direction)) * this.speed));
}
  1. Create the following abstract method in MovableObject and then re-compile the class:
abstract void draw();
What have we just done ?   We set our code up so that all MovableObjects will update their location by moving ahead in the direction that it is facing by an amount indicated by the speed.   Don't worry about the math here.   By making the draw() method abstract, this means that the subclasses Player and Ball must each implement the method in their own unique way.   Of course, in reality we would need to do much more in the moveForward() method ... such as checking for collisions and whether or not we fell into a trap or found a prize ... but for this tutorial we will not go that far.
  1. The code in MovableObject now compiles, but the Player and Ball classes will not (try it if you don't believe me).  We need to implement a draw() method in those classes.   Create a simple draw() method in these two classes that simply displays (using System.out.println()) the location, speed and direction of the object in a format like this:
Player is at (110,100) facing 0 degrees and moving at 10 pixels per second
Ball is at (110,100) moving in a direction of 0 degrees at 10 pixels per second

Of course, in a real game this method would actually draw the player or ball on the screen, but we will not discuss this here.

Hopefully you see the advantage of abstract classes and methods.   If we now decided to add another kind of movable object, we would inherit attributes and behavior for free.   All we would need to do is write a draw() method ... and the other methods we would get for free (e.g., update() and moveForward()).
  1. Now we will make a Ball and Player move in the game.
    1. In the Ball class, override the default inherited update() method from the MovableObject class by writing your own update() method that causes the ball to decelerate (i.e., slow down) after moving forward.   That is, upon updating, Ball objects should move forward, then decrease their speed by one and then draw themselves.   Make sure that the speed never becomes negative though.
    1. Test your code by adding the following lines to the end of your GameTestProgram, which will test out the updating of the Player and Ball objects:
        // Test out some Player and Ball movement
        System.out.println("--------------------------------------------------------");
        Player player = new Player("Red Guy", Color.red, new Point(100,100), 0);
        player.speed = 10;
        player.direction = 0;
        g.add(player);

        Ball ball = new Ball(new Point(100,100));
        ball.speed = 10;
        ball.direction = 0;
        g.add(ball);

        player.update();
        player.update();
        player.update();
        ball.update();
        ball.update();
        ball.update();
If all is working, you should see something like this as the last 6 lines of your output (depending on how you wrote your draw() method):

Player is at (110,100) facing 0 degrees and moving at 10 pixels per second
Player is at (120,100) facing 0 degrees and moving at 10 pixels per second
Player is at (130,100) facing 0 degrees and moving at 10 pixels per second
Ball is at (110,100) facing 0 degrees and moving at 9 pixels per second
Ball is at (119,100) facing 0 degrees and moving at 8 pixels per second
Ball is at (127,100) facing 0 degrees and moving at 7 pixels per second
Notice that the player and ball both move to the right (i.e., direction 0) but that the ball slows down during each update.

  1. Notice above that we explicitly called update() three times for the player and three times for the ball.   Now we will do the updating automatically.
    1. In the Game class, add a method called updateObjects() that iterates (i.e., use a FOR loop) through the objects and updates all of the GameObjects.   Your code should be very simple and similar to the displayObjects() method in regards to the format.
    1. However, you will notice that the Game class keeps an array of general Objects.   Change this type to GameObject[] so that it assumes a list of GameObjects instead of just Objects.   You will also need to make a similar change at an additional 2 places in the code.   Make sure that your code compiles.
    1. Remove the last 6 lines of your GameTestProgram (i.e., the update() lines that we added) and replace it with this:
        // Make some updates
        for (int i=0; i<20; i++)
            g.updateObjects();
  1. Comment out the code that adds the blue, yellow and green players as well as the first ball at (90,90) so that your output will be clearer.   Run the code, you should notice that the Ball eventually stops but the Player keeps moving.   Here is the final two lines that you should see in the output:
Player is at java.awt.Point[x=300,y=100] facing 0 degrees and moving at 10 pixels per second
Ball is at java.awt.Point[x=155,y=100] facing 0 degrees and moving at 0 pixels per second

You may not have realized that your code actually updates the StationaryObjects as well, but that these don't really do anything when updated, hence you don't see anything printed out for the walls, traps and prizes.
  1. Now we will add functionality to allow game objects (i.e., Ball and Trap) to be harmful to the players of the game.   We will do this by making use of a JAVA interface definition called Harmful.  This interface will be implemented by all objects that are harmful to the players.  That means, we will be able to ask an object how harmful it actually is by asking for its damage amount so that we can update our score.

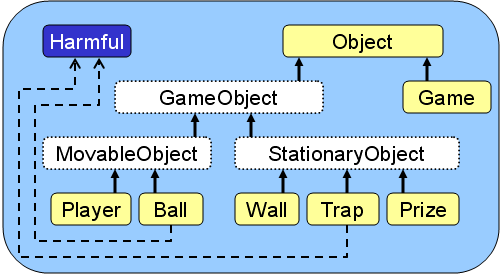

    1. Create an interface called Harmful by writing the following code in in a file called Harmful.java, and the compile it:
interface Harmful {
    public int getDamageAmount();
}
  1. Add a minor change to the Ball and Trap class definitions so that they both implement this interface.  Once you do this, these two classes will not compile.   That's because in order to "implement an interface", a class must have code for the methods in that interface.  The Ball and Trap classes are now forced to write a method called getDamageAmount() and your code will not compile until you do so.   Write this method in the Ball class so that balls cause a -200 damage amount (i.e., return -200 when asked for the damage amount) and in the Trap class so that traps have only a -50 damage amount.   As we did with the toString() method, we must put the word public before the method's return type, since interfaces require us to write publicly accessible methods (we'll discuss this later in the course).
  1. Write the following method in the Game class which returns an array of all objects that implement the Harmful interface:
    Harmful[] harmfulObjects() {
        int    harmfulCount = 0;

        // Count harmful objects
        for (GameObject g:  this.gameObjects)
            if (g instanceof Harmful)
                harmfulCount++;

        // Now gather them together
        Harmful[]   badGuys = new Harmful[harmfulCount];
        harmfulCount = 0;
        for (GameObject g:  this.gameObjects)
            if (g instanceof Harmful)
                badGuys[harmfulCount++] = (Harmful)g;
        return badGuys;
    }

Examine the code to make sure that you understand it.   The one aspect of the code that should be new to you is the type-casting of g to (Harmful) when we add it to the badGuys list.   This is necessary in order for the compiler to allow you to put general GameObjects into a list that expects only Harmful objects.   What we are trying to do is valid because we just checked (by means of the instanceof) that the object was indeed Harmful ... but the compiler does not realize that we did this "check" on the previous line.   Compile the code.
  1. Add the following to the end of your GameTestProgram class and compile/run it:
// Get the harmful objects
System.out.println("\nHere are the Harmful Objects:");
Harmful[]  harmfulOnes = g.harmfulObjects();
for (int i=0; i<harmfulOnes.length; i++)
    System.out.println(harmfulOnes[i];
You should see the following, showing 2 Trap objects and 1 Ball object:

Here are the Harmful Objects:
Trap at java.awt.Point[x=125,y=35]
Trap at java.awt.Point[x=145,y=145]
Ball at java.awt.Point[x=155,y=100] facing 0 degrees going 0 pixels per second
    1. Now that we have the harmful objects, we can search through them and ask each one of them what damage amount they have.   Write a method in the Game class called assessDanger() that uses the harmfulObjects() method that you just wrote and returns the integer total sum of damage amounts for all the harmful objects.   When you write the code that iterates through the harmful objects, you should notice that you do not need to know what kind of actual object it is (i.e., Trap or Ball).   Instead, you just need to call the getDamageAmount() method for the object.
Interestingly, you will notice as well that we did not create a damageAmount attribute for these Harmful objects.  We could not create such a shared attribute without altering the class hierarchy.   Why ?  Ask the TA if you do not know.   Of course, by having the getDamageAmount() method which returns an appropriate value, we kind of "fake" having such an attribute.

Add the following to the end of your GameTestProgram class and compile/run it:

// Assess the current amount of danger
System.out.println("\nCurrent Danger Assessment:");
System.out.println(g.assessDanger());

You should see a value of -300 (from the one ball and two traps in the game).

MORE CHALLENGING PRACTICE QUESTIONS:
  1. Look through the toString() methods in the classes and make use of inheritance by eliminating duplicate code.   You should notice that all GameObjects have a similar portion of their toString() method in common (i.e., they all display their class name and location) and that all MovableObjects also have toString() code in common that shows the direction that they are facing as well as their speed.
  1. Using a 2D array, create a GameBoard class that will display a game board on the System console showing the walls, as well as the locations of the players, ball, traps and prizes.  It is up to you how to display it.   However, here is one possible way to display the game as a 20x15 grid:

####################
#                $ #
#    v       @     #
#                  #
#        ###########
#                  #
##### $            #
#           #      #
#           #  >   #
#           #      #
#           #  @   #
#  o               #
#  ^           $   #
#                  #
####################

You may notice that the players show their direction as '<', '>', '^' or 'v'.   You can choose any representation that you want.

You should add an attribute to the Game class to maintain this gameBoard.   The GameBoard should maintain an attribute called grid which will be a Character[][] object that will contain all the characters shown on the gameboard. You will likely want to define the following abstract method in the GameObject class so that each type of GameObject is forced to define the way that they look on the gameBoard by returning a character representation of themselves:
abstract char appearance();

You may want to add a display(GameObject[] objects) method in the GameBoard class that will draw the GameBoard on the screen according to the objects in the game that are passed in as a parameter.   You should comment out the code in draw() methods for MovableObjects (or removing the drawing behavior altogether) since the GameBoard will draw them.   Likely, you will also want to add this  displayBoard() method in the Game class to display the gameBoard:

    void displayBoard() {
        this.gameBoard.display(this.gameObjects);
    }

Note:  There are some tricky aspects regarding MovableObjects:
  1. The math for moving the player assumes origin (0,0) at the bottom left, but in computer science ... as with the Point class ... (0,0) is at the top left.  So, you will need to either reverse the y value before displaying (i.e., y = MaxGameBoardHeight - y) or reverse the y in the math code for moving the MovableObjects forward.
  1. Don't worry about collisions.   But you will need to make sure that the objects don't go beyond the borders.
  1. You will need to erase the old location of the balls and players by placing a "space" there after the object moves.   To do this, you will need to keep the previousLocation for a MovableObject and update it each time the object moves so that you can make use of it during display.
Test your code by using this GameBoardTestProgram with this code:
import java.awt.Point;
import java.awt.Color;

class GameBoardTestProgram {
    public static void main(String args[]) {
        Game  g = new Game();

        // Add some walls
        g.add(new Wall(new Point(0,0), 20, 1));
        g.add(new Wall(new Point(0,0), 1, 15));
        g.add(new Wall(new Point(19,0), 1, 15));
        g.add(new Wall(new Point(0,14), 20, 1));
        g.add(new Wall(new Point(1,6), 4, 1));
        g.add(new Wall(new Point(9,4), 10, 1));
        g.add(new Wall(new Point(12,7), 1, 4));

        // Add some prizes
        g.add(new Prize(new Point(17,1), 1000));
        g.add(new Prize(new Point(6,6), 500));
        g.add(new Prize(new Point(15,12), 750));

        // Add some traps
        g.add(new Trap(new Point(13,2)));
        g.add(new Trap(new Point(15,10)));

        // Add a Player
        Player player = new Player("Red Guy", Color.red, new Point(3, 12), 0);
        player.speed = 1;
        player.direction = 90;
        g.add(player);

        // Add a Ball
        Ball ball = new Ball(new Point(3, 11));
        ball.speed = 5;
        ball.direction = 0;
        g.add(ball);

        // Make some updates, displaying the board each time ...
        for (int i=0; i<15; i++) {
            g.updateObjects();
            g.displayBoard();
            System.out.println("--------------------");
        }
    }
}
