4  Building Abstractions with Data

What's in This Set of Notes ?

• Introduction
• Abstraction
• Pairs
• Abstraction Barriers
• What is Meant by Data
• Representing Sequences
• Hierarchical Structures
• Symbolic Data

Review (essence of Programming)

• Computational processes
• iterative process
• recursive process
• Role of procedures in program design
• Primitive data (numbers)
• Primitive operations (arithmetic)
• Combining Procedures to form compound procedures
• composition
• conditional
• Use of parameters
• How to abstract procedures with define
• How to enhance language with higher-order procedures

Focus

Want to build abstractions by combining data objects to form compound data

Why? (same reasons for compound procedures)

to elevate the conceptual level at which we design programs

increase modularity of design

enhance expressive power of language

Data Abstraction

Methodology that enables us to isolate how a compound data object is used from the details of how it is constructed from more primitive data objects, enabling one to replace/swap/switch implementations.

Interface between two parts of system (user and developer) will be a set of procedures called selectors and constructors

---

Procedural Abstraction

Separate the way the procedure would be used from the details of how the procedure is implemented in terms of more primitive procedures, enabling one to replace/swap/switch implementations

Example: Rational Numbers

n1/d1 + n2/d2 = (n1d2 + n2d1) / (d1d2)
n1/d1 - n2/d2 = (n1d2 - n2d1) / (d1d2)
n1/d1 * n2/d2 = (n1n2) / (d1d2)
(n1/d1)/ (n2d2) = (n1d2) / (n2d1)
n1/d1 = n2/d2 if and only   n1d2 = n2d1

• Assume you have the following constructors and selectors:

(make-rational ?n ?d) returns rational number with numerator ?n and denominator ?d

(numerator ?x) returns numerator of rational number ?x

(denominator ?x) returns denominator of rational number ?x

(define (add-rational x y)
    (make-rational (+ (* (numerator x) (denominator y))
                                (* (numerator y) (denominator x)))
                            (* (denominator x) (denominator y))))

(define (subtract-rational x y)
    (make-rational (- (* (numerator x) (denominator y))
                                (* (numerator y) (denominator x)))
                            (* (denominator x) (denominator y))))

(define (multiply-rational x y)
    (make-rational (* (numerator x) (numerator y))
                           (* (denominator x) (denominator y))))

(define (divide-rational x y)
    (make-rational (* (numerator x) (denominator y))
                           (* (denominator x) (numerator y))))

(define (equal?-rational x y)
    (= (* (numerator x) (denominator y))
        (* (numerator y) (denominator x))))

How do we glue together numerator and denominator to represent rational number?

• However, notice that we can use rational numbers even though we don't know anything about how they are structures
• The answer is Pairs

• A pair (sometimes called a dotted pair) is a record structure with two fields called the car and cdr fields (for historical reasons).
• Pairs are created by the procedure cons.
• The car and cdr fields are accessed by the procedures car and cdr.
• The car and cdr fields are assigned by the procedures set-car! and set-cdr!

(cons 1 2) => (1.2)  // . only for display
(define x (cons 1 2))
(car x) => 1
(cdr x) => 2
(define y ( cons 3 4))
(cons x y) => ((1.2) 3 . 4)  //Think of pairs as a single object
(define z (cons x y))
(car z) => (1.2)
(car (car z)) => 1
(car (cdr z)) => 3

---

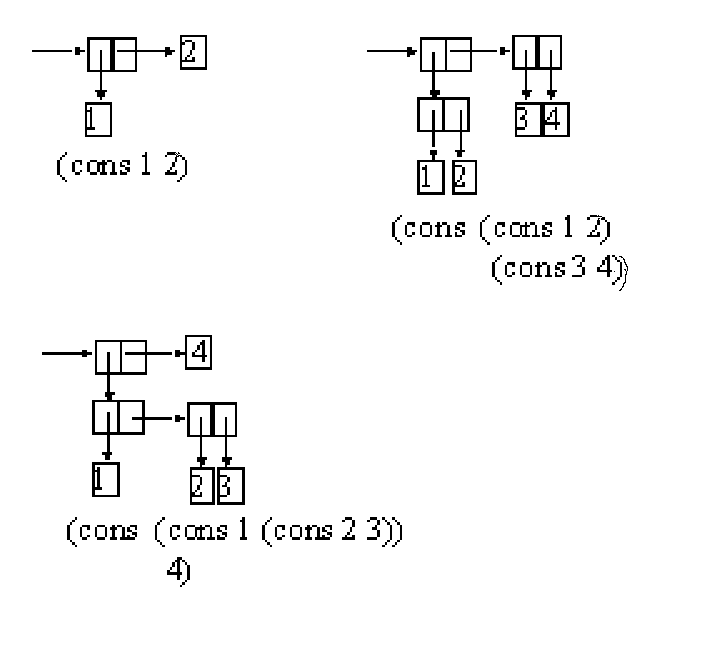

Pair Visualization: Box and Pointer Notation

---

Closure

• A package of function and variable bindings is called a closure. This term derives from the idea that the packaged functions are now "closed" to the state of the outside world - they can be used in any environment, independent of the bindings that exist in that environment, because all of the identifiers they uses are bound either to arguments, local variables, or the closure's external bindings.

Closure Property

• an operation (like cons) for combining data objects satisfies the closure property if the results of combining things with the operation can themselves be combined using the same operation

---

Representing rational numbers with Pairs

(define (make-rational numerator denominator)

    (cons numerator denominator))

(define (numerator rational)

        (car rational))

(define (denominator rational)

        (cdr rational))

---

Using Rationals

(define one-third (make-rational 1 3))
(add-rational one-third one-third) => (6.9)

Must fix problems with display

• should not show dot notion
• should reduce rational to lowest terms

(define (print-rational x)
    (newline)
    (display (numerator x))
    (display "/")
    (display (denominator x)))

(print-rational (add-rational one-third one-third)) => (6 / 9)

(define (make-rational numerator denominator)
    (let (( g (gcd numerator denominator)))
        (cons (/ numerator g) (/ denominator g))))

(print-rational (add-rational one-third one-third)) => (2 / 3)

abstraction barriers isolate different  levels of the system

--- (Programs that use rational numbers) ---

    rational numbers in problem domain

---- (add-rational , subtract-rational , ...) ---

   rational numbers as numerators and denominators

--- (make-rational, numerator, ...) ---

    rational numbers as pairs

--- (cons, car, cdr) ---

    however paris are implemented

• --- lines represent abstraction barriers
• barrier separates the program above that uses the data abstraction from the program below that implements the data abstraction
• each level is the interface
• For data abstraction
• identify type of data objects
• identify basic set of operations
• use only those operations
• makes programs easier to maintain and modify later

 (define (numerator rational)

    (let ((g (gcd (car rational) (cdr rational))))

    (/ (car rational) g)))

• More than just selectors and constructors
• More than just arbitrary set of procedures
• Must also specify conditions that these procedures must fulfill in order to be a valid representation
• E.G.

If x is (make-rational numerator denominator)
Then
    (numerator x)/ (denominator x) = numerator/denominator
• Same can be said for pairs

If z is (cons x y)
Then
    (car z) = x and
    (cdr z) = y
• Therefore, any triple of procedures can provide basis for pairs

List Structure

• Instead of cons use list primitive

(list a1 a2 ... an) which is equivalent to (cons a1 (cons a2 ( .... (cons an '()))) ...)

• Note: #f, nil, and '() are all the same.
• DrScheme does not define nil for you. Do it using (define nil '())

(define one-to-four (list 1 2 3 4))

(car one-to-four) => 1

(cdr one-to-four) => (2 3 4)

(cons 10 one-to-four) => (10 1 2 3 4)

---

List Operations

Problem: Find nth element in list?

(define (get-element items n)

    (if (= n 0)

        (car items)

        (get-element (cdr items) (- n 1))))







Technique know as cdring down

(define squares (list 1 4 9 16 25))

(get-element squares 3) => 16

---

Problem: Append two lists together?

(define (append list1 list2)
    (if (null? list1)
        list2
        (cons (car list1)
                (append (cdr list1) list2))))

Technique know as consing up

(define odds (list 1 3 5 7 9))
(append square odds) => (1 4 9 16 25 1 3 5 7 9)

---

Problem: Scaling numbers?

(define (scale-list items factor)
    (if (null? items)
        nil
        (cons (* (car items) factor)
                (scale-list (cdr items) factor))))

Technique know as mapping over lists

(scale-list (list 1 2 3 4 5 ) 10) => ( 10 20 30 40 50)

Abstracting the general idea to capture a common pattern expressed as a higher-order procedure

(define (map procedure items)
    (if (null? items)
        nil
        (cons (procedure (car items))
                (map procedure (cdr items)))))

(map abs (list -10 2.5 -11.6 17)) => (10 2.5 11.6 17)
(map (lambda (x) (* x x)) (list 1 2 3 4)) => ( 1 4 9 16)

---

Problem: Selecting numbers?

(define (filter predicate sequence)
    (cond ((null? sequence) '())
                ((predicate (car sequence)) (cons (car sequence) (filter predicate (cdr sequence))))
                (else (filter predicate (cdr sequence)))))

Technique know as filtering over lists

(filter odd? (list 1 2 3 4 5 6 7)) => ( 1 3 5 7)

---

Problem: Summation of numbers?

(define (accumulate operator initial sequence)
    (if (null? sequence)
        initial
        (operator (car sequence) (accumulate operator initial (cdr sequence)))))

Technique know as accumulating over lists

(accumulate + 0 (list 1 2 3 4 5)) => 15
(accumulate * 1 (list 1 2 3 4 5)) => 120

---

Problem: How to combine mapping and accumulating?

(define (flatten-map procedure sequence)
        (accumulate append nil (map procedure sequence)))

(map list (list 1 2 3)) => ( (1) (2) (3))
(flatten-map list (list 1 2 3)) => ( 1 2 3)

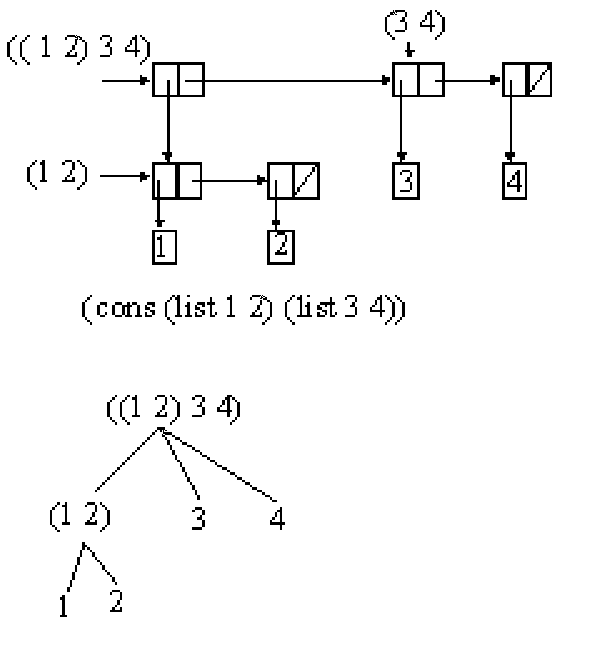

• Lists generalize to represent sequences whose elements may themselves be sequences (trees)

• Recursion is a natural tool for dealing with trees
(define (count-leaves tree)
    (cond ((null? tree) 0)
                ((not (pair? tree)) 1)
                (else ( + (count-leaves (car tree))
                                (count-leaves (cdr tree))))))

• Suppose we want (a b)
• Can't use (list a b) because list will evaluate a b first
• In order to manipulate symbols we need the ability to quote a data object
• Quotation marks indicate that a word or sentences is to be treated literally as a string of characters
• Scheme follows the same practice to identify lists and symbols
• The meaning of  single quote character is to quote the next object
• Quote also allows us to type in compound objects

(define a 1)

(define b 2)

(list a b) => (1 2)

(list 'a 'b) => (a b)

(list a 'b) => (1 b)

(list 'me 'you) => (me you)

(car '(a b c)) => a

(cdr '(a b c)) => (b c)

• Violates general rule that all compound expressions should be delimited by ().
• Therefore special form quote is added
• (quote a) and 'a are equivalent, as is (quote ( a b c)) and '(a b c)
